CARINAnav

Smart laser control for movable laser systems from LAP

Key figures

hardware platforms

meters Bluetooth
range

data interfaces

systems in use

Portable, intuitive, smart – CARINAnav

CARINAnav is the control system for the DORADO and DORADOnova laser. It is the connecting piece between the treatment planning system and the LAP laser system. CARINAnav transmits the exact spatial coordinates to the movable lasers, which projects the laser lines onto the patient with precision.

CARINAnav was developed for use via touch screen and can be operated either flexibly at the patient with a tablet PC or via desktop PC from the control room. Depending on the workflow and process step, it is necessary to define coordinates based on the patient's anatomy or to project defined coordinates from the treatment planning.

For this reason, coordinates can be entered in 3 different ways: Per manual control, position input or data import. There are 3 data interfaces available for data import: DICOM Standard or LAP file format are available for transmitting coordinates. Customers using the SIEMENS syngo.via RT Image Suite have the option of controlling the lasers directly from the imaging software.

Features

User-friendly

The user interface design is clear and intuitive. Operation is quick and easy, thanks to its clear navigation structure and controls.

Cyber secured

CARINAnav has multiple defenses against cybercrime: SSL-encrypted data import, digital signature, protected login, and secure interfaces ensure the highest level of security for your data.

Fits your workflow

You have different options to transmit coordinates via CARINAnav to the laser system: import of patient coordinates via data interfaces, laser positioning via touch control or by manual coordinate input.

Portable

Use the control system exactly where you need it: Thanks to the tablet solution, you are always mobile. This shortens distances and enables a better patient interaction.

Flexible

Whether LAP file format, DICOM Isocenter Import, or SIEMENS syngo.via RT Image Suite, CARINAnav is flexible for data import and adapts to your individual workflow.

Compatible

Thanks to the DICOM standard, CARINAnav is compatible with all well-known manufacturers of CT and MRI Imaging Devices, Treatment Planning Systems and virtual simulation software.

Configurations

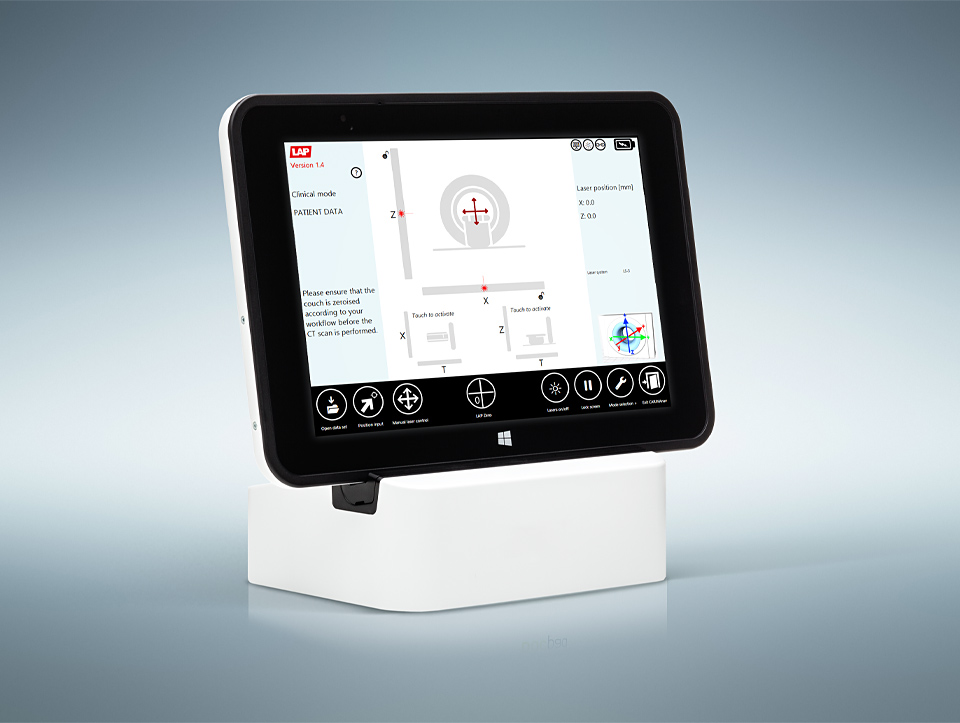

CARINAnav (E) Tablet PC with a 10.1" touchscreen and a handle for better handling. Communication with the laser system is via Bluetooth® and the coordinates of the treatment planning can be transferred via clinical LAN in the docking station.

CARINAnav (B) Tablet PC with an 8.4" screen. Communication with the laser system via Bluetooth and the coordinates of the treatment planning can be transferred via clinical LAN in the docking station.

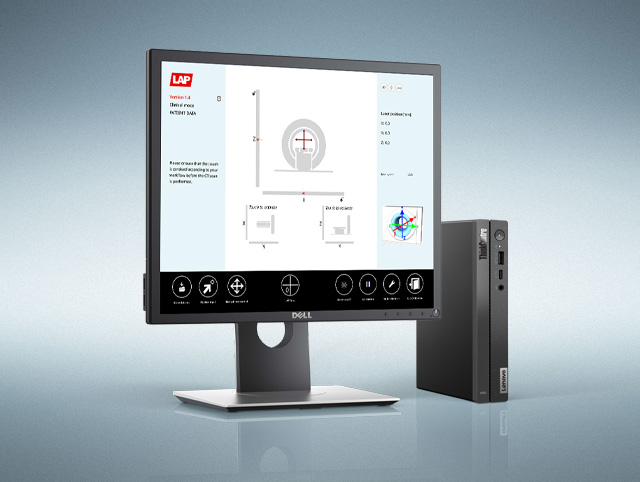

Desktop PC with an 19" screen, keyboard and mouse. Communication with the laser system via USB and the coordinates of the treatment planning can be transferred via clinical LAN.

Direct Laser Steering with the syngo. via RT Image Suite

With the syngo. via RT Image Suite from SIEMENS Healthineers, the DORADO, DORADOnova or DORADOnova MR3T laser system can be controlled directly (Direct Laser Steering). The operation at the CARINAnav is no longer necessary. The integration of the external LAP lasers is thus comparable to direct lasers on the CT.
Direct Laser Steering allows the target coordinate to be set after contouring the tumor and organs at risk, transferred directly to the lasers, and the patient marked accordingly. This allows your team to work efficiently and safely.

Q&A

Is the software pre-installed on the tablet/desktop PC?

Yes, the software will be installed during production and is ready to use after installation.

How is the connection to the Treatment Planning System provided?

The tablet PC (with docking station) or the desktop PC is connected to the clinical LAN. The tablet PC can also be connected via wifi. The devices can communicate with each other via (static) IP addresses.

Do I get training on how to use the software?

Yes, every customer get's a training for the clinical admin and the clinical users. Software operation and all procedures for the various workflows will be explained and all questions answered.

Online activation

The online activation for CARINAnav has been closed. If you need to activate your software please send the CARINAnav Serial (V1.x.x-SNxxxxxxxxx) of your CARINAnav tablet or desktop PC to service.healthcare@lap-laser.com. We will send you back the activation key by email.
