DTEC-PRO

Camera system for process optimization and quality assurance

Visual process control for your production

A simple, modular system lets you focus on what matters – your production processes. DTEC-PRO is a camera system that provides effective assistance in manual product steps like composite layup as well as in quality assurance. DTEC-PRO consists of an industrial camera with infrared flash, and is the ideal add-on for CAD-PRO laser projection systems from LAP. DTEC-PRO can be retrofitted on all existing CAD-PRO systems with a software update.

Save valuable time with the automatic calibration and intuitive operation of the DTEC-PRO camera system.
Improve your production quality with camera-based process monitoring and regular quality assurance.

PRO-SOFT software

The PRO-SOFT software supports all camera functions, intuitively and user-friendly, from work preparation to visual process control, to storage of camera images for regular quality assurance. With the PRO-SOFT MT multitasking software for simultaneous work processes, one camera system can cover up to eight different workpieces. That means that you can work on eight different work units at the same time, independently of each other.

Features for quality assurance

Camera live image

The “Camera Live Image” function shows the PRO-SOFT user the field of view from the camera’s perspective. At start of production, this ensures that the tool is properly positioned in the field of view and the targets are visible to the camera. The correct position can also be checked during production. You always have your processes in view.

Virtual projection

In addition, the system delivers a virtual image of the real projection contour in realtime. The projection contour currently displayed by the CAD-PRO laser projector is automatically shown in the picture as a colored contour line. This enables permanent control of each projection step.

Saving images

Save high-contrast camera images optionally with the virtual projection in the database for your quality assurance. Image capture happens automatically when the projection is switched (in layer change). Operators can also manually capture images, by mouseclick in the PRO-SOFT or by remote control.

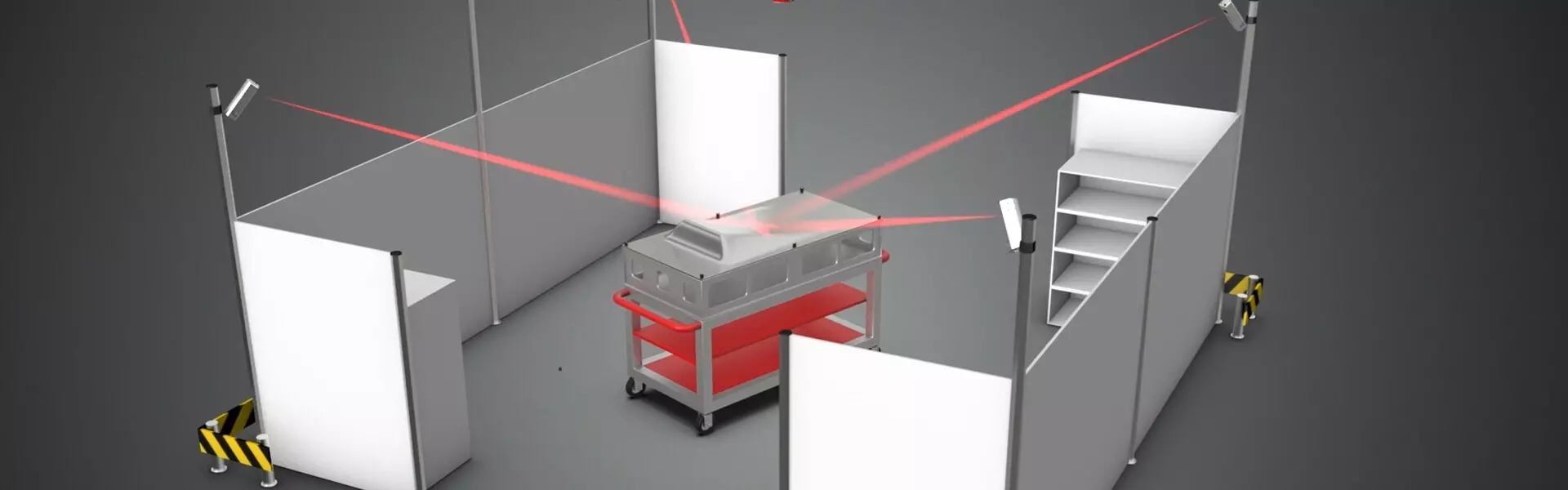

DTEC-PRO camera system for process acceleration

Learn about the function and application of DTEC-PRO

Features

Fast

Depending on configuration and workflow, you may reduce the calibration time to a mere minimum.

Intelligent

Tools known to the system will be identified and then calibrated automatically. Manually targeting of each reflector will be obsolete.

Safe

If there is a position deviation, a calibration of the CAD-PRO laser projector is automatically initiated and the projection adjusted if necessary.

Eye friendly

Workers are not irritated by a sudden flashlight. Flash and camera work in the infrared spectrum, invisible to the human eye.

More coverage

One single DTEC-PRO may cover the area of several projectors and identify multiple tools or molds. You don't need to equip each projector with a camera.

Easy to retrofit

DTEC-PRO only need a software update to be retrofitted to existing systems.

Application examples

Aerospace industry

Laser projection systems for alignment and positioning during production of aircrafts, helicopters and space vehicles

Wind power industry

Laser projection systems for manufacture of fiber-reinforced rotor blades and parts assembly of wind turbine nacelle casings

Composite industry

Laser projection systems for companies specialized on manufacturing composite parts

Concrete industry

Laser projection systems for precise placement of elements on pallets and tables for the precast concrete parts production

Wood industry

Positioning lasers and laser projection systems for alignment and positioning for the entire process chain of the woodworking industry

Worker guidance

Laser-based assistance systems from LAP visually guide workers through complex assembly processes.
