SERVOLASER XPERT

System with fixed and controlled movable line lasers

KEY FIGURES
installed systems worldwide
>0
installed systems worldwide
hours of service life
>0
hours of service life
mm max. moving range
600
mm max. moving range
mm/s max. moving speed
0
mm/s max. moving speed

SERVOLASER Xpert: PRECISE, FAST, POWERFUL

SERVOLASER Xpert SERIES PRODUCT VIDEO

YOUR BENEFITS

MORE COLOR

Free combination of red, green and blue fixed or moving modules

MORE POWER

Modules with up to 40 mW laser power improve visibility especially on matte or black surfaces.

MORE PRECISION

Projection accuracy from ± 0.2 mm

MORE SPEED

Modules move with up to 1000 mm/s.

MORE COMMUNICATION

EtherNet/IP™ (standard), PROFIBUS, PROFINET, MODBUS/TCP ...

MORE APPLICATIONS

Moving ranges up to 2600 mm, combination of two rails with up to four moving laser modules

MOVEMENT TYPES

FULL RANGE

FULL RANGE

One laser module moves over the whole length.

MAX RANGE

MAX RANGE

Two laser modules move over the complete range, each way reduced by the opposite modules width on the far end stop.

SYMMETRICAL

SYMMETRICAL

Two laser modules move synchronuosly in relation to the middle of the rail.

MOVEMENT RANGES

TECHNICAL DATA

LASER DATA

Number of modules* 1 or 2 movable line lasers, one additional fixed center laser optional
Wavelength and color* 635 nm (red), 520 nm (green), 450 nm (blue)
MTTF red, green: > 30,000 h at 25°C
Laser power 1 ... 40 mW (dimmable)
Opening angle red, green: 90°, blue: 70°
Line width 0,2 ... 0,6 mm (FWHM) at 1 ... 4 m focus distance
* laser color free to chose and combine

HOUSING DATA

Moving speed of modules up to 1000 mm/s
Projection accuracy ±0.16 ... ±0.5 mm
Enclosure rating IP 54
Ambient temperature 0 ... 40°C
Power supply 24 VDC
Interfaces Ethernet/IP, MODBUS TCP, Profibus DP

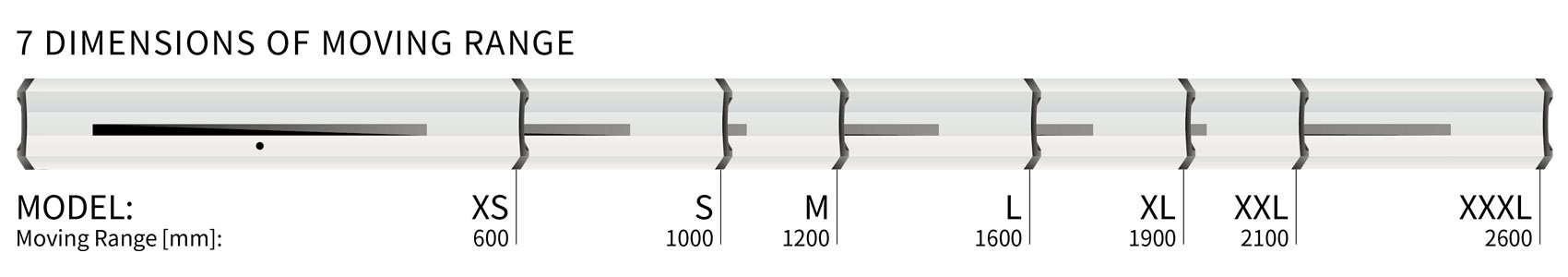

MODEL, MOVEMENT RANGE, DIMENSIONS

Model Moving range Dimensions [L×W×H]
XS 600 1000×180×190 mm
S 1000 1400×160×190 mm
M 1200 1600×180×190 mm
L 1600 2000×180×190 mm
XL 1900 2300×180×190 mm
XXL 2100 2500×180×190 mm
XXXL 2600 3000×180×190 mm
