XtrAlign HD LASERS

Xtra robust stainless steel housing with bright red laser lines, points and crosses

KEY FIGURES
mm/m laser line straightness
0.1
mm/m laser line straightness
enclosure rating
IP67
enclosure rating
impact resistance
IK10
impact resistance
hours of service life
> 30,000
hours of service life

XTRA FLEXIBLE INDUSTRIAL LASERS

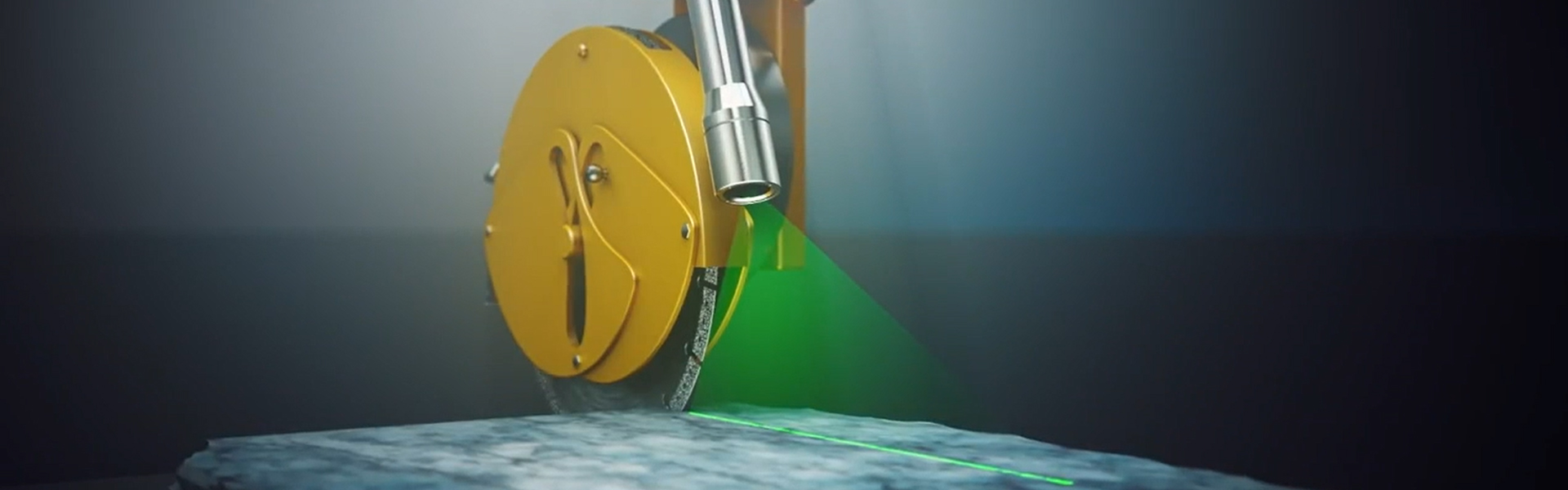

XTRALIGN LASER SERIES PRODUCT VIDEO

YOUR BENEFITS

DUST- AND WATERPROOF

You need lasers for use in the desert or offshore ? Try LAP XtrAlign series. The enclosure rating is IP67. One restriction only: obviously you have to keep the beam exit clean.

PRACTICALLY UNBREAKABLE

IK10 is the highest rating to define the resistance to impacts by kinetic energy. XtrAlign lasers have to withstand the impact of a 5 kg steel free fall hammer. 5 times. Tough enough?

MANUALLY FOCUSABLE

Adjust the brightest possible spot, cross or laser line with minimum width for your application. Readjust without tools after changing the projection distance.

WIDE RANGE OF OPENING ANGLES

Select the line length for your application. Get the maximal brightness at the lowest possible laser class. Increase safety by ending the laser beam within your working space.

CONFIGURATIONS

LINE LASER

Models Laser power Line length* @80° Laser class @80° @40° @30° @20° @10°
LAP 1 HDL 1 mW up to 1 m 1 1 1 1 1
LAP 3 HDL 3 mW up to 2 m 1 1 2 2 2
LAP 5 HDL 5 mW up to 4 m 1 2 2 2 2
LAP 10 HDL 10 mW up to 6 m 2 2M 2M 2M 2M
LAP 15 HDL 15 mW up to 10 m 2 2M 2M 2M 2M
LAP 30 HDL 30 mW up to 20 m 2M 3R 3R 3R 3R
* standard optics, line length depends on ambient light, height above surface, angle

CROSSHAIR LASER

Models Laser power Laser class @62° Laser class @38°
LAP 1 HDX 1 mW 1 1
LAP 3 HDX 3 mW 1 1
LAP 5 HDX 5 mW 2 1
LAP 10 HDX 10 mW 2M 2
LAP 15 HDX 15 mW 2M 2
LAP 30 HDX 30 mW 2M 2M

POINT LASER

Models Laser power Laser class
LAP 1 HDP 1 mW 2
LAP 3 HDP 3 mW 3R
LAP 5 HDP 5 mW 3R
LAP 10 HDP 10 mW 3B
LAP 15 HDP 15 mW 3B
LAP 30 HDP 30 mW 3B

TECHNICAL DATA

LASER DATA

Laser type diode
Wavelength 635 nm
Laser color red
Divergence 0.5 mrad
Laser power 1 ... 30 mW

ELECTRONICS DATA

Operating Voltage DC 12 ... 30 VDC
Operating Voltage AC 15 ... 20 VAC
Power consumption < 200 mA
Connector M 12, 4-core

HOUSING DATA

Enclosure rating IP 67
Shock resistance IK 10
Dimensions Length 140 mm × ø 25 mm (front) / 20 mm (back)
Weight 220 g
Ambient conditions -10 ... +40 °C, 35 ... 90 % rel. humidity (non condensing)

ACCESSORIES

Brackets
B2-HD
B2-HD
B2-HD-K
B2-HD-K
B2-BKK-HD
B2-BKK-HD
B2-FD-J
B2-FD-J
B2-FD
B2-FD
B3-HD
B3-HD
B5-HD-F
B5-HD-F
B5-HD
B5-HD
Power supply and connectors
Angled Connector 90° 24V
Angled Connector 90° 24V
Power Supply for 24V lasers
Power Supply for 24V lasers
